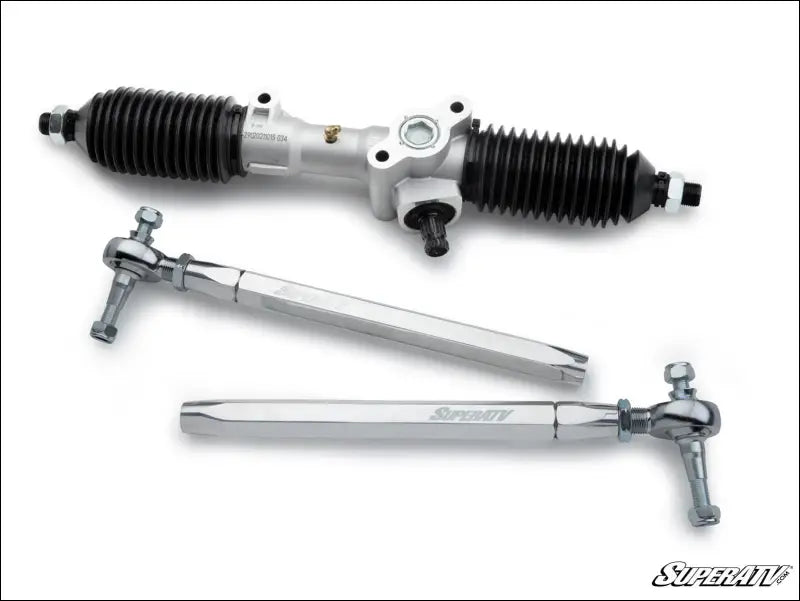

Polaris Ranger XP 1000 RackBoss 2.0 Rack and Pinion

RackBoss 2.0 Raises the Bar Whether you use stock or you’ve upgraded to an aftermarket rack, one thing is always true: the responsiveness of your steering is going to get worse over time. Or at least that was true until RackBoss 2.0. It’s our updated and upgraded version of the original RackBoss that’s built to be the strongest, most durable rack you can get. It uses our X24 Tech—a dual-bushing design only in RackBoss 2.0—to reduce wear by over 50%. So install SuperATV’s RackBoss 2.0 Rack and Pinion on your Polaris Ranger XP 1000. With it, you can run bigger tires, take on treacherous terrain, and ride with confidence everywhere you go. Minimizes Wear and Tear with Our Dual-Bushing Design We use a dual PTFE bushing design to prevent the wear and tear that you’re used to. Thanks to our X24 Tech, which uses tough bushings at both ends of the rack, RackBoss 2.0 can power through bigger hits with larger tires without getting sloppy steering. You get like-new operation that lasts longer than any other Ranger 1000 steering rack. Plus, the built-in grease fittings allow you to push out all the crud that can get in when you go hard in mud or water. It’s only possible with RackBoss 2.0. Swaged Tube Tie Rods Our swaged tube tie rods are tough but lightweight. The flared-out steel tube design boosts the strength beyond what a standard 7/8” tube would have. Plus, it comes paired with our unbeatable tie rod ends that use 16 mm rack threads and huge 14 mm rod threads. They won’t let you down. Solid Steel Bar Tie Rods Solid steel bar tie rods give you the robust strength you need to ride through rough terrain. They’re perfect for turning big tires through slop and navigating boulder fields. The 1” diameter steel rod is paired with beefy tie rod ends—3/4” outer tie rods and rebuildable inner tie rods that use 3/4” rod threads and 16 mm rack threads. All that strength lets you get wild. Billet Aluminum Hex Tie Rods If you want the strongest, lightest, and best looking tie rods for your Ranger 1000, you want our billet aluminum hex tie rods. The polished billet construction is big and beefy, giving you the long-term durability you want without adding a ton of weight. They come complete with our oversized 3/4” outer tie rod ends and rebuildable inner tie rod ends that use 3/4” rod threads and 16 mm rack threads. For the biggest builds, hardest rides, and neck-turning good looks, these are the tie rods for you. Looking for a More Traditional Rack? If you don’t need all the benefits of a RackBoss 2.0, you can dial it back to our original, more traditional RackBoss 1.0. It uses the same beefy housing but doesn’t include the extra PTFE bushing. Our RackBoss 1.0 Rack and Pinion comes with steel swaged tubes that are tougher than stock and perfect for casual riders looking for an upgrade. It’s finished with our tough 14 mm inner and outer tie rod ends so you can ride harder without worry. Patent No. 11,345,393
RackBoss 1.0 Swaged Tie Rod
RackBoss 2.0 Swaged Tie Rod
RackBoss 2.0 Solid Steel Tie Rod
RackBoss 2.0 Billet Tie Rod
Price
$349.95
$399.95
$499.95
$599.95
X24 Tech Dual-Bushing Design
✔
✔
✔
Tie Rod Material
Steel tube
Steel tube
Solid steel bar
6061 Billet aluminum
Inner Ball and Socket Thread Diameter
14 mm
14 mm rod threads, 16 mm rack threads
3/4” rod threads, 16 mm rack threads
3/4” rod threads, 16 mm rack threads
Outer Tie Rod End Thread Diameter
14 mm
14 mm
3/4”
3/4”
Greasable
✔
✔
✔
Inner Boots
✔
✔
✔
Steering Stop Kit
✔
✔
✔
✔
Misalignment Bushings, Tie Rod Studs, & Hardware
✔
✔
✔
✔
Fitment Information
Polaris Ranger XP 1000 : 2017-2025
Polaris Ranger XP 1000 Crew : 2017-2025
Polaris Ranger XP 1000 High Lifter Edition : 2017-2025
Polaris Ranger XP 1000 High Lifter Edition Crew : 2017-2025
Polaris Ranger XP 1000 NorthStar Edition : 2019-2025
Polaris Ranger XP 1000 NorthStar Edition Crew : 2019-2025
Polaris Ranger XP 1000 Back Country Edition : 2019
Polaris Ranger XP 1000 Back Country Crew Edition : 2019
Polaris Ranger XP 1000 Texas Edition : 2020-2021
Polaris Ranger XP 1000 Texas Edition Crew : 2020-2021
Polaris Ranger XP 1000 Trail Boss : 2021
Polaris Ranger XP 1000 Trail Boss Crew : 2021
Polaris Ranger XP 1000 Waterfowl Edition Crew : 2021
Polaris Ranger XP 1000 Big Game Edition : 2021
Polaris Ranger XP 1000 Big Game Edition Crew : 2021
Features
RackBoss 2.0 Features:
Heavy-duty dual PTFE bushings:
Designed with X24 Tech
Prevents wear
Reduces slop
Improves overall durability
Available tie rod options:
Swaged tube
Solid steel bar
Billet aluminum hex
Solid steel and billet aluminum tie rods use:
3/4” outer tie rod ends
Rebuildable inner tie rod ends that use 3/4” rod threads and 16 mm rack threads
Swaged tube tie rods use:
14 mm outer tie rod ends
Rebuildable inner tie rod ends that use 3/4” rod threads and 16 mm rack threads
65% larger housing than stock
Over 50% less wear than OEM after 15,000 cycles
Grease fitting for rack gears
RackBoss 1.0 Features:
Uses a single PTFE bushing
65% larger housing than stock
Less wear than stock
Uses steel swaged tie rods
14 mm inner and outer tie rod ends
Includes all hardware and instructions
